Gradient Chord Chart

Chord charts are a great way to display and quantify relationships between entities, but there are some limitations. Recently, I built a series of chord charts to show which actors have appeared together in films, and how often. Once I had built out the charts and attempted to add some color, I hit a wall. In some cases, when building these relationship diagrams, there is a logical directional flow to the relationship. Something moves from Entity 1 (Source) to Entity 2 (Target). In those cases, its easy to assign meaningful color to the chart. You can assign it by Source if you want to highlight where things are flowing from, or you can assign it by Target if you want to highlight where things are flowing to. But what if there is no flow to the relationship? How do you assign color then?

This roadblock got me thinking. If I want to add a unique color to each Entity in my chart, and there is no directional flow, then the color of the chord should be a blend of the two colors. Or better yet, it should transition from one color to the other. I have seen others do some really cool stuff with applying gradients to “solid” chart types. Ken Flerlage has an excellent post here about applying gradients to Bar Charts and Area Charts. There’s another great post from Ivett Kovacs about gradients here. Some different techniques, but the foundation is the same. If you want to apply a gradient to an otherwise “solid” chart, use a series of thin lines to “color in” the chart. So that’s exactly what I did.

I’ll warn you ahead of time, this is going to be a long post. But if you’re just interested in building one of these charts, and not so much in how to build it, I’ve got some templates for you to use. Just follow the instructions in the “Setting Up Your Data Source” section below, and swap out the data source in the template workbook. You can download the template here, and download the sample data here.

Setting Up Your Data Source

In the sample data (link above), there are two tabs; one for our data, and one for densification. You do not need to make any changes to the Densification table, but I’ll talk through the setup as we build each section of this chart. In the Base Data, you should only update the first four columns and not the calculated fields (red text) in the next five columns. Here is a quick explanation of each field and what it represents

From_ID: Unique Identifier for each Source entity. This should be a sequential number starting at 1 and ending at however many entities you have in your data. For each entity, you may have multiple rows, one for each relationship, but they should all have the same From_ID.

From_Name: A display name for each Source entity.

To_Name: A display name for the other entity in the relationship, or the “Target”.

Value: The measure being displayed. In the sample data, this value field represents the number of movies that the two actors appeared in together.

The following fields should not be changed. They will update automatically based on the first 4 columns, but here is a quick description of what they are calculating.

To_ID: This is a lookup to get the correct ID for the Target entity

From_Total: This is a sum of the Value field for each Source entity

From_Run_Total: This is a running total of the Value field

Unique_Relationship: This is a unique identifier for the relationship

Unique_Relationship_Order: This is used to identify the first and second occurrence of each Unique_Relationship (there will be two rows for each relationship, one where Actor 1 is the Source and Actor 2 is the Target, and one where Actor 2 is the Source and Actor 1 is the Target).

If you are building these charts from scratch, I would still recommend downloading the template to see how the Data Source is set up. In order to get the running total value for the Target, or the end of each chord, we are doing a self-join in the Physical Layer on the Base Data table (see below for join conditions). Then, we are re-naming the [From_Run_Total] field from the right side of that join (Base Data1) to [To_Run_Total]. And then we are joining to the Densification table using a join calculation (value of 1 on each side). Here is what the joins look like in our data source.

Building the Chart

This chart is actually comprised of 4 different sections, identified by the ShapeType field in the densification table. There are the outer polygons (Outer_Poly), the gradient chords (Inner_Lines), the borders for the gradient chords (Inner_Lines_Border), and a small rounded polygon on the end of each chord (Lines_End_Poly) to fill the gap between the chords and the outer polygons.

An image showing the 4 unique sections that make up the gradient chord chart

Before we start working on any of these individual sections, there are a number of calculations that we are going to need for all of them.

First, let’s create a parameter that will let us control the spacing between each of the outer polygons. Call this parameter [Section Spacing], set the data type to Float, and set the value very low, around .01. Once you have the chart built you can set this higher for more spacing, or lower for less spacing.

Now let’s use that parameter, along with the Max of our running total field from the data source (which represents the grand total of the [Value] field), to calculate the width of our spacing between polygons. We’ll call this [Section Spacing Width]

Section Spacing Width = [Section Spacing]*{MAX([From Run Total])}

Now we need an adjusted grand total that accounts for all of the spaces as well. We’ll call this [Max Run Total – Adj] and it will be our grand total plus the number of spaces * the width of the spaces.

Max Run Total – Adj = {MAX([From Run Total])+MAX([From ID]*[Section Spacing Width])}

Next, we want to calculate the position around the circle where each of our sections, or entities, will start. We’ll do this by subtracting the [Value] field from the running total, adding the spacing for all previous sections, and then dividing that by our adjusted grand total. Call this field [Section_Start].

Section_Start = { FIXED [From ID] : MIN(([From Run Total]-[Value]) + (([From ID]-1)*[Section Spacing Width]))} / [Max Run Total – Adj]

Now we need to do the same thing to calculate the position around the circle where each section ends. The only difference between this and the previous calc, is that we are going to use the running total without subtracting the value. Call this field [Section_End]

Section_End = { FIXED [From ID] : MAX([From Run Total] + (([From ID]-1)*[Section Spacing Width]))} / [Max Run Total – Adj]

Now for an easy one. Let’s calculate the width of each section by subtracting the [Section_Start] from the [Section_End]. Call this [Section_Width].

Section_Width = [Section_End]-[Section_Start]

Next, we need to do the same thing to get the start and end positions for each of the “sub-sections”, or each of the entity’s relationships. The calculations are almost identical, the only difference is that we are fixing the Level of Detail calculations on [From_ID] and [To_ID], instead of just [From_ID]. Call these calculations [From_SubSection_Start] and [From_SubSection_End].

From_SubSection_Start = { FIXED [From ID],[To ID] : MIN(([From Run Total]-[Value]) + (([From ID]-1)*[Section Spacing Width]))} / [Max Run Total – Adj]

From_SubSection_End = { FIXED [From ID],[To ID] : MAX([From Run Total] + (([From ID]-1)*[Section Spacing Width]))} / [Max Run Total – Adj]

And just like before, we’ll create a simple calculation to get the “width” of these sub-sections. Call this calculation [SubSection_Width].

SubSection_Width = [From_SubSection_End]-[From_SubSection_Start]

Next, we need to do the same thing, but need to calculate the start and end position for the other end, or Target, of each relationship. The calculations are the same as above except we’ll use the [To_Run_Total] instead of [From_Run_Total] and [To_ID] instead of [From_ID]. Call these calculations [To_SubSection_Start] and [To_SubSection_End].

To_SubSection_Start = { FIXED [From ID],[To ID] : MIN(([To Run Total]-[Value]) + (([To ID]-1)*[Section Spacing Width]))} / [Max Run Total – Adj]

To_SubSection_End = { FIXED [From ID],[To ID] : MAX([To Run Total] + (([To ID]-1)*[Section Spacing Width]))} / [Max Run Total – Adj]

And finally, we need a simple calculation to get the total number of points for each of our shape types. Call this calculation [Max Point].

Max Point = { FIXED [Shape Type] : MAX([Points])}

Densification

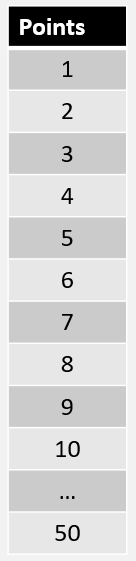

Before we move on, let’s take a look at our densification table. In this table, we have 5 fields.

Shapetype: Corresponds to the 4 sections of the chart mentioned previously.

Points: Used, along with Side, to calculate the positions of every point, in every element of the chart.

Order: Used on Path to tell Tableau how to connect our Points.

Side: Used to differentiate between the interior and exterior “lines” for the outer polygons and chords.

Line ID: Used on Detail to segment our lines appropriately. For all sections of the chart, other than the Inner_Lines, this value will be 1, since we want one continuous line for the polygons, and for the borders of the chords. For the Inner_Lines, we have values from 1 to 1,000, so we can “color” our chart with up to 1,000 lines per chord.

These fields are used in slightly different ways in each section of the chart, so we’ll talk about them more as we start building.

Building the Outer Polygons

First, let’s take another quick look at our densification table. For the outer polygons, identified by Shapetype=Outer_Poly, we have a total of 50 records. The Order field, used to tell Tableau how to connect the points, is a sequential number from 1 to 50. Then there is the Points field, which is used to calculate the position of each point around the circle. This number goes from 1 to 25, where the Side field = Min, and repeats where the Side field = Max. This will allow us to draw two parallel lines (Min and Max), and then connect them together to create those outer polygons. And lastly, the Line ID has a value of 1 because we are “drawing” one continuous “line” for each of these polygons. Clear as mud right? Here’s a quick illustration to help visualize how these fields function together.

This image shows side by side how the Points and Order fields are used

Before we start building the calculations for this section, we need a few parameters. The first is just going to be a generic value for the radius of our circle. The second, is going to determine the thickness of these outer polygons.

Create a parameter called [Radius], set the data type to Float and set the Current value to 10. This can be any number you want, it doesn’t really matter, we just need something to determine the size of our chart.

Next, create a parameter called [Outer_Poly_Thickness], set the data type to Float, and set the Current value to 1. You can play around with this number to get the thickness you want, but I would recommend setting it somewhere around 10% of the [Radius] value.

Now for our calculations. Going back to Part 1 of the Fun with Curves in Tableau Series, we know that we need 2 inputs to plot points around a circle. We need the distance of each point from the center of the circle, and we need the position of each point around the circle. Let’s start with the distance.

In the image from earlier in this section, we see that we need two lines that follow the same path, one for Min and one for Max. So these two lines will have different distances from the center. For the Min line, we’ll just use the [Radius] of our circle. For the Max line, we’ll use the [Radius] plus our [Outer_Poly_Thickness] parameter. Create a calculated field called [Outer_Poly_Distance].

Outer_Poly_Distance = IF [Side]=”Min” THEN [Radius] ELSE [Radius]+[Outer_Poly_Thickness] END

Next, we need to calculate the position of the points. Each of our polygons are going to be different lengths, depending on the [Value] field in our data source, so we need to calculate the spacing of each point (to evenly space 25 points along the two “lines”). Earlier, we calculated the start and end position for each of these polygons, and we’ll use those to calculate the spacing, or “width”, that each point covers. Create a calculated field called [Outer_Poly_Point_Width].

Outer_Poly_Point_Width = [Section_Width]/([Max Point]-1)

And now we’ll use that, along with the start position of each polygon, to calculate the position for each of our 25 points. Point 1 will be positioned at the start of the polygon, Point 25 will be positioned at the end of the polygon, and the remaining 23 points will be equally spaced between those two points. Call this calculation [Outer_Poly_Point_Position].

Outer_Poly_Point_Position = [Section_Start]+(([Points]-1)*[Outer_Poly_Point_Width])

Now we have the two inputs needed to calculate all of our points for these outer polygons. We just need to plug them into our X and Y calculations.

Outer_Poly_X = [Outer_Poly_Distance]* SIN(2*PI() * [Outer_Poly_Point_Position])

Outer_Poly_Y = [Outer_Poly_Distance]* COS(2*PI() * [Outer_Poly_Point_Position])

Let’s pause here and build a quick view to test out our calculations so far.

  • Drag [ShapeType] to filter and filter on “Outer_Poly”
  • Change Mark Type to Polygon
  • Right click on [Outer_Poly_X], drag it to Columns, and when prompted, choose Outer_Poly_X without aggregation
  • Right click on [Outer_Poly_Y], drag it to Rows, and when prompted, choose Outer_Poly_Y without aggregation
  • Drag [From_ID] to color
  • Right click on [Order], convert to Dimension, and then drag to Path

If all of the calculations are correct, your sheet should look something like this.

An image showing what the outer polygons should look like

One section down, three more to go.

Building the Line End Polygons

Next, let’s build the small rounded polygons that are going to go at the end of each of our chords. The calculations will be pretty similar to the previous section. For those outer polygons, we essentially drew two curved lines that followed the same path, and then connected those lines by using the Polygon Mark Type, and using our [Order] field on Path. Now, we basically want to do the same thing, but with a few minor differences. Instead of drawing two lines, we only need to draw one. Tableau will automatically connect our first and last point, resulting in a small semi-circle. The other difference is that instead of drawing one polygon for each entity (actor in this example), we need to draw a polygon for each relationship.

To draw these polygons, we need the same exact 5 calculations as we did in the previous section, but with some modifications. To start, let’s build a parameter to control the spacing between these polygons, and the outer polygons. Call this parameter [Poly_Spacing], set the data type to Float, and set the current value to .25. Again, once the view is built, you can play with this parameter to get the spacing you want.

Next, we need to calculate the distance of our points from the center of the circle. We’ll do this by subtracting our [Poly_Spacing] value from the [Radius] . Call this calculation [Line_End_Poly_Distance].

Line_End_Poly_Distance = [Radius]-[Poly_Spacing]

Next, we need to calculate the position for our 25 points, just like we did in the previous section. The only difference here, is that instead of using the section start and section end, we’re going to use the sub-section start, and sub-section end, since we need to create these for each relationship. Call this calculation [Line_End_Poly_Point_Width].

Line_End_Poly_Point_Width = [SubSection_Width]/([Max Point]-1)

Using that, along with our Subsection start calculation, we can calculate the position of all 25 points for these polygons. Call this calculation [Line_End_Poly_Point_Position].

Line_End_Poly_Point_Position = [From_SubSection_Start]+(([Points]-1)*[Line_End_Poly_Point_Width])

And now we just need to plug these inputs into our X and Y calculations.

Line_End_Poly_X = [Line_End_Poly_Distance]* SIN(2*PI() * [Line_End_Poly_Point_Position])

Line_End_Poly_Y = [Line_End_Poly_Distance]* COS(2*PI() * [Line_End_Poly_Point_Position])

Once again, let’s pause to check our work.

  • Drag [ShapeType] to filter and filter on “Line_End_Poly”
  • Change Mark Type to Polygon
  • Right click on [Outer_Poly_X], drag it to Columns, and when prompted, choose Outer_Poly_X without aggregation
  • Right click on [Outer_Poly_Y], drag it to Rows, and when prompted, choose Outer_Poly_Y without aggregation
  • Drag [From_ID] to Color
  • Drag [To_ID] to Detail
  • Right click on [Order], convert to Dimension, and then drag to Path

When complete, the line end polygons should look something like this.

An image showing what the line end polygons should look like

We’re halfway there! Kind of…

Building the Inner Line Borders

Now we need to build our chords. Let’s start with the borders since those are a little more straightforward, and will make the last section a little easier to understand.

Going back to Part 2 of the Fun with Curves in Tableau Series, we know that we need 3 sets of coordinates to create our bezier curves; one for the start of the line, one for the end of the line, and one for the mid-point. Since we’re building a chord chart, we’ll use 0,0, for the mid-point. So that just leaves the start and end of our lines.

As always, we’ll need 2 inputs to calculate these coordinates, the distance and position. The distance is easy. It’s going to be the same distance as our Line End Polygons, [Radius] – [Poly_Spacing]. The position is a little more tricky.

For each of our chords, we’re going to need 2 lines, one for the interior, or Min, line, and one for the exterior, or Max line.

An image showing the two lines, the Min and Max, that will be used to create the chords

Notice the Min Line, starts at the end of the first chord, or sub-section, and then ends at the start of the target sub-section. The opposite is true for the Max Line. This line starts at the start of the first chord, and ends at the end of the target sub-section. We have already calculated the position for all of those sections, so we can plug those into our X and Y calcs to get our coordinates. We’ll need two sets of calculations, one for the starting coordinates and one for the ending coordinates.

Chord_X_Start = if [Side]=”Min” then ([Radius]-[Poly_Spacing])* SIN(2*PI() * [From_SubSection_End])
else ([Radius]-[Poly_Spacing])* SIN(2*PI() * [From_SubSection_Start])
END

Chord_Y_Start = if [Side]=”Min” then ([Radius]-[Poly_Spacing])* COS(2*PI() * [From_SubSection_End])
else ([Radius]-[Poly_Spacing])* COS(2*PI() * [From_SubSection_Start])
END

Chord_X_End = if [Side]=”Min” then ([Radius]-[Poly_Spacing])* SIN(2*PI() * [To_SubSection_Start])
else ([Radius]-[Poly_Spacing])* SIN(2*PI() * [To_SubSection_End])
END

Chord_Y_End = if [Side]=”Min” then ([Radius]-[Poly_Spacing])* COS(2*PI() * [To_SubSection_Start])
else ([Radius]-[Poly_Spacing])* COS(2*PI() * [To_SubSection_End])
END

These calculations may look complicated, but they’re all relatively simple. They are all using the same distance input (Radius – Poly Spacing), and then depending on if it’s the Min line or the Max line, and if it’s the Start or End of the line, we’re plugging in the appropriate position field (From_SubSection_Start, From_SubSection_End, To_SubSection_Start, and To_SubSection_End).

Those four calculations will give us the 2 remaining sets of coordinates needed to draw our bezier curves. So let’s plug all of our coordinates into the bezier X and Y calculations. But first, we need to calculate [T] to evenly space points along our lines.

T = ([Points]-1)/([Max Point]-1)

Chord_X = ((1-[T])^2*[Chord_X_Start] + 2*(1-[T])*[T]*0+[T]^2*[Chord_X_End])

Chord_Y = ((1-[T])^2*[Chord_Y_Start] + 2*(1-[T])*[T]*0+[T]^2*[Chord_Y_End])

Let’s pause again and make sure our calculations are working as expected.

  • Drag [ShapeType] to filter and filter on “Inner_Lines_Border”
  • Change Mark Type to Line
  • Right click on [Chord_X], drag it to Columns, and when prompted, choose Chord_X without aggregation
  • Right click on [Chord_Y], drag it to Rows, and when prompted, choose Chord_Y without aggregation
  • Drag [From_ID] to Color
  • Drag [To_ID] to Detail
  • Drag [Line_ID] to Detail
  • Right click on [Order], convert to Dimension, and then drag to Path

When finished, your bezier curves should look something like this. There should be two lines for each relationship in your data source.

An image showing what the chord borders should look like

We’re getting close!

Building the Inner Lines

Here’s the fun part. This is the section that really makes this chart unique. And guess what…we already built all of the calculations needed to make this work. Go the sheet you built in the previous section, and change the filter from Inner_Lines_Border to Inner_Lines…I’ll wait. Pretty cool right? These may look like polygons, but really, each of these chords is being “colored” with 1,000 individual lines. Go ahead and click on a few to see for yourself.

This is what one of those chords would look like if we had used 50 lines instead of 1,000.

An image demonstrating how the gradient lines are used

So how does this work? How were we we able to use the same exact calculations for the chord borders, and these inner lines, when all we did was change a filter? It’s all in how we set up the densification table.

For both of these sections, we used the [Points] field in the same way…to calculate the position of each point along the chords. The [Line ID] and [Order] fields are where the magic happens.

Let’s look at the chord borders first.

An image showing how the Order and Line ID fields are used for the chord borders

For these lines, the [Order] field has sequential numbers from 1 to 50, and the [Line ID] field has just two values, 1 and 2. With [Line ID] on Detail, and [Order] on Path, this will draw 2 curved lines.

Now look at the inner lines.

An image showing how the Order and Line ID fields are used for the chord gradients

For these lines, the [Order] field has just two values, 1 and 2, and the [Line ID] field has sequential numbers from 1 to 50 (up to 1,000 in the final chart). In this case, when you put [Line ID] on Detail, and [Order] on Path, it will draw 50 straight lines.

So using the same exact calculations, but getting a little creative with our data source, we can draw both the borders of our chords, and “color” them in. Now let’s bring all of these sections together. We’re almost done!

Building the Final Chart

So now we have all of the calculations done for the four sections of our chart. Time to bring them together. In this viz we have two different Mark Types that we are trying to use together; Polygons and Lines. So we’ll need to use a dual axis and create a calculation for each mark type. All of our sections will share the same Y calculation, but we’ll have an X calculation for the polygon sections, and an X calculation for the line sections. These will all be simple case statements to use the appropriate X and Y values for each section of the chart.

Final_X_Line

CASE [Shape Type]
WHEN “Inner_Lines” then [Chord_X]
WHEN “Inner_Lines_Border” then [Chord_X]
END

Final_X_Poly

CASE [Shape Type]
WHEN “Outer_Poly” then [Outer_Poly_X]
WHEN “Line_End_Poly” then [Line_End_Poly_X]
END

Final_Y

CASE [Shape Type]
WHEN “Inner_Lines” then [Chord_Y]
WHEN “Inner_Lines_Border” then [Chord_Y]
WHEN “Outer_Poly” then [Outer_Poly_Y]
WHEN “Line_End_Poly” then [Line_End_Poly_Y]
END

Now to build our view. Let’s start with the Line sections.

  • Change Mark Type to Line
  • Right click on [Final_X_Line], drag it to Columns, and when prompted, choose Final_X_Line without aggregation
  • Right click on [Final_Y], drag it to Rows, and when prompted, choose Final_Y without aggregation
  • Drag [From ID] to Detail
  • Drag [To ID] to Detail
  • Drag [ShapeType] to Detail
  • Drag [Line ID] to Detail
  • Drag [Order] to Path

When this part is complete, your chart should look something like this.

An image showing what the chart should look like with the gradient lines

Now, let’s add our polygons.

  • Right click on [Final_X_Poly], drag it to the right of [Final_X_Line] on the Columns shelf, and when prompted, choose Final_X_Poly without aggregation
  • Right click on the green [Final_X_Poly] pill on the columns shelf and select “Dual Axis”
  • Right click on one of the axes, and select “Synchronize Axis”
  • On the Marks Card, go to the Final_X_Poly card and change the Mark Type to Polygon
  • Remove the [To ID] field from Detail
  • Remove the [Line ID] field from Detail
  • Drag the [Unique Relationship] field to Detail

At this point, your chart should look something like this.

An image showing the chart with all 4 sections included

Woohoo, our chart is built! Before we start fine tuning our design, there are a few filters we should add. All of these will improve performance, but one of them is needed to accurately color our chart.

First, for our outer polygons, there are actually a number of identical polygons stacked on top of each other. The way our data is set up, it’s creating one of these polygons for each relationship for each entity. But we only want one polygon per entity. This will not only improve performance, but also fix some weird display issues that happen on Tableau Public. It doesn’t happen all the time, but sometimes when you have multiple identical polygons stacked on top of each other, the curved lines end up looking jagged and weird. So this will help fix that. This filter will include anything that’s not an outer polygon, and only the first outer polygon for each entity. We’ll call this [Single_Outer_Poly_Filter].

Single_Outer_Poly_Filter = [Shape Type]!=”Outer_Poly” or ([Shape Type]=”Outer_Poly” and [To ID]={ FIXED [From ID] : MIN([To ID])})

Drag that to the Filter shelf and filter on True.

This next calculation helps with performance and also ensures an accurate color calculation in the next section. For each of our chords, as it stands now, there are actually two sets of lines stacked on top of each other. That’s because each unique relationship has two rows in our source data (one where Actor 1 is the Source and Actor 2 is the Target, and one where Actor 2 is the Source and Actor 1 is the Target). This calculation will keep all of the records for our two polygon sections, but for the line sections, it will only keep the first occurence of each relationship. Call it [Unique_Relationship_Filter].

Unique_Relationship_Filter = CONTAINS([Shape Type],”Poly”) or (not CONTAINS([Shape Type],”Poly”) and [Unique Relationship Order]=1)

Drag that to the Filter shelf and filter on True.

This last one is purely for performance and is completely optional. Depending on how large this chart will be in your viz, you may not need 1,000 lines to color the chords. You can use a parameter and a calculated field to set the number of lines you want to use. First, create a parameter called [Gradient Lines], set the data type to float, set the max value to 1,000, and set the current value to about 750. Then create a simple calc called [Gradient_Line_Filter].

Gradient_Line_Filter = [Points]<=[Gradient Lines]

Drag this field to the Filter shelf and filter on True. Then, right click on the blue pill, and select “Add to Context”.

Alright, now we’re ready to move on to Design!

Adding Color to the Chart

This part took me a little while to figure out. The goal is to be able to have a unique color for each of the entities, and then have the chord between them, transition from one of the entity’s colors, to the other. We have our [From_ID] field that is a sequential number for each entity, so that’s what we’ll use to color our polygons.

To color our chord borders, we’re going to use a parameter with a value lower than our first [From ID], and I’ll talk more about this a little later on. For now, create a parameter called [Color Range Start], set the data type to Float, and set the current value to .5.

To color the gradient lines, we’ll need a few calculations. The first thing we need to do, is calculate an evenly spaced value between the ID for the Source entity and the ID for the Target entity. For example, if we have a chord going from entity 1 to entity 2, we’ll take the difference of those and divide by the number of lines (1,000). Same thing if we have a chord going from entity 1 to entity 5. Let’s create that calc and call it [Color Step Size].

Color Step Size = ABS([From ID]-[To ID])/([Max Point]-1)

Now we’ll multiply that value by the [Points] field and add it to our [From ID] field to get evenly spaced values between the Source ID and the Target ID. Call this [Step Color Num].

Step Color Num = [From ID] + (([Points]-1)*[Color Step Size])

And finally, a simple case statement to use the [Step Color Num] value for the inner lines, the [From ID] value for the polygons, and the [Color Range Start] value for the chord borders. Call this [Color].

Color

CASE [Shape Type]
WHEN “Inner_Lines” then [Step Color Num]
WHEN “Line_End_Poly” then [From ID]
WHEN “Outer_Poly” then [From ID]
WHEN “Inner_Lines_Border” then [Color Range Start]
END

Now, on the Marks Card, click on the “All” card. Then, right click on the [Color] field, drag that onto Color, and when prompted, choose Color without aggregation. Notice something kind of funky happens when you add the Color.

An image showing the issue caused by sorting on the color measure

Our Border Lines are rising to the top and crossing over all of the Inner Lines, which is not what we want. The reason this is happening, is that Tableau uses the order of fields on the Marks Card to sort. When we added [Color], it moved to the top of the list of fields on the Marks Card, so that is the first thing being used to sort. Since our Borders all currently have the lowest value of any mark (based on the parameter we created earlier, it should be .5), those lines are coming to the top.

To fix that, on the Marks Card, on the Final_X_Line card, drag the [Color] field all the way to the bottom. The order of the fields on the Marks Card should be as follows to get the correct sorting.

  1. From ID
  2. To ID
  3. Shape Type
  4. Line ID
  5. Order
  6. Color

Now your chart should look something like this.

An image with the color sorting resolved

It’s starting to come together!

Picking the Right Colors

You could use any of the sequential palettes available in Tableau, and they would work just fine. But for my viz, I wanted unique colors for each of the entities, not different shades of the same color. The palette I ended up using is called “Inferno”. You can create any custom palette you would like, but you want to make sure you pick a palette that is “Perceptually Uniform”. There is a lot behind these palettes, but basically it means that each color in your palette is close to the next color, and the amount of change between one color and the next is consistent throughout the entire palette. Here are some great examples of Perceptually Uniform color scales.

Examples of perceptually uniform color palettes

Here is the color palette that I used, and if you’re not sure how to add custom color palettes to Tableau Desktop, here’s an article from the Tableau Knowledge Base.

<color-palette custom=’true’ name=’Inferno’ type=’ordered-sequential’>

<color>#F3E660</color>

<color>#FAC72C</color>

<color>#FCA50F</color>

<color>#F98511</color>

<color>#EE6925</color>

<color>#DD513A</color>

<color>#C73E4C</color>

<color>#AE2F5C</color>

<color>#932667</color>

<color>#781C6D</color>

<color>#5C136E</color>

<color>#420F68</color>

<color>#24094F</color>

<color>#090625</color>

<color>#FFFFFF</color>

</color-palette>

Just a few things to keep in mind when building your palette. I would recommend ordering them in your preferences file from lightest to darkest. Also, on the very last line, add a line for White (#FFFFFF). This is what is used for the chord border color. Also, make sure that you set the type=sequential.

Once you add your custom palette, go ahead and select it from the Color options on the Mark Card. If you ordered your colors from lightest to darkest, you’ll also want to check the “Reversed” box in the color options.

Now that I’ve added my custom palette and applied it to the viz, this is what it looks like.

An image with the custom Inferno palette applied to the chord chart

Just one more note about color. We had built that [Color Range Start] parameter to select a value that can be used for coloring the borders. In my sample data, I only had 5 entities, so the largest value in my [Color] field is 5. When I use .5 in that parameter, it gives me the full color range from my palette, and a white border. If you have more or less entities, that might not be the case. You may need to play with this parameter a bit to make it work correctly for your chart.

If you pick a number that is too low, you will not get the full color range from your palette. This is what it looks like if I set that value to -1.

An image showing the resulte when the color range start value is too low

On the other side of that, if you pick a number that is too high, the white from your palette will start to “bleed” into your chart. This is what it looks like if I set the value to .9

An image showing the result when the color range start value is too high

It’s not an exact science, so just play with that parameter until you have a white border and your full color range. If you don’t have the full color range, increase that parameter value. If the white is bleeding into your chart, decrease that value.

Finishing Touches

We are almost done! Just a few more steps that I would recommend. First, hide the null indicator in the bottom right of the chart, by right clicking on it and selecting “Hide Indicator”. Then clean up your borders and grid lines, and last, but definitely not least, I would recommend creating a calculated field to determine the thickness of your lines. For the gradient lines, we want a very thin line, but for the borders, it should be a little bit thicker. Create a calculated field called [Line Size].

Line Size = If [Shape Type]=”Inner_Lines_Border” then 2 else 1 END

Then, on the Marks Card, on the Final_X_Line card, right click on the [Line Size] field, drag it to Size, and then select Line Size without aggregation when prompted. Then, similar to what we did with Color, drag that field all the way down to the bottom on the Marks card, below [Color]. Again, you can play with these to get the look that you want. Double click on the Size Legend, and play with the slider. This is how mine are set.

An image showing the Line Size legend

And that’s it! We are done! If you have made it this far, please let me know on Twitter or LinkedIn. This was the most complicated topic we’ve covered so far, and I would love to get your thoughts, and to see what you came up with. As always, thanks for reading, and check back soon for more fun Tableau tutorials!

Categories
How-To's Tableau Techniques

Fun With Curves in Tableau Part 2+: Controlling Bezier Curves

This post is an add-on to Part 2 of the Fun with Curves in Tableau series.

Recently, after using the post above to create a chord chart, someone had reached out asking if there was a way to tone down the curves, or, as they had put it, to make them less “bouncy”. I started racking my brain trying to figure out how to make that happen. In my mind, the only possible way to change the intensity of the curves would be to calculate a new mid-point for each of the lines, rather than using the center of the circle (0,0).

For the next hour or so, I wrote and tested 9 new calculated fields that would allow users to “smooth” their curves. Excitedly, I jumped back on Twitter to share my update, and found that this person had not only figured out how to do it, but the method they came up with was exponentially easier than what I had done. So a huge thank you to Anne-Sophie Pereira De Sá for figuring out Method 1 below for controlling your curves.

Luckily, the work I had done wasn’t a complete waste, as it led me to two more methods for controlling the intensity of the curves. So in this post we’re going to cover a total of three different approaches depending on what you want your curves to look like.

Also, just want to mention that these methods are really only relevant if you’re building a radial chart, like a chord chart. If you are using the Part 2 tutorial to build something like an Arc Chart, there are much easier methods for controlling the intensity of the curves (you can modify the intensity of the curves by adjusting the Y_Mid value).

If you want to follow along, I have updated the sample workbook for Part 2 of the series, which can be downloaded here.

The Methods

Method 1: Smoothing

The first method will allow you to tone down the intensity of your curves and it is incredibly easy to implement. It uses a parameter to set the intensity of your curve using values from 0 (standard curve) to 1 (no curve). The height of each curve is changed proportionally (ex. .1 will reduce the height of each arc by roughly 10% from it’s standard curve height).

A gif demonstrating Method 1

Method 2: Consistent Scaling

This method allows you to create consistent curves (same arch height) for all of your lines, regardless of where the start and end points are on the circle. It’s much more complicated, but the result is pretty nice. Again, this method uses a parameter with values between 0 and 1 to set the intensity of the curve.

Method 3: Dependent Scaling

The final method allows you to set the arch height based on the length of the line, so shorter lines on the outside of the circle will have a lower arch, and longer lines going through the middle of the circle will have a higher arch. The approach is similar to Method 2, sharing many of the same calculations, and also uses a parameter with values between 0 and 1 to set the intensity of the curves.

Method 1 walk-thru

As I mentioned above, this method is incredibly easy to implement (thank you again Anne). All you need is a new parameter and a few small tweaks to the Bezier X and Y calculations. First, let’s create our parameter.

  • Create a new Parameter called “Smooth Factor”
    • Set Data type to “Float”
    • Set Current Value to 0
    • Set Allowable values to “Range”
    • Set Minimum to 0
    • Set Maximum to 1
    • Set Step size to .1
An image showing the correct parameter settings

Next, let’s modify our calculations. The only difference between the calculations discussed in the original post, and the calculations used here, are the exponents. The original calculation has an exponent of 2 in two sections of the calculation. Anne had figured out that if you replaced this exponent with a 1, you got a straight line, and if you replaced it with anything between a 1 and a 2, it would tone down the curve of the line proportionally.

Here is our original calculation for X

((1-[T])^2*[Circle_X_Start] + 2*(1-[T])*[T]*0+[T]^2*[Circle_X_End])

And here is our new calculation for X

((1-[T])^(2-[Smooth Factor])*[Circle_X_Start] + 2*(1-[T])*[T]*0+[T]^(2-[Smooth Factor])*[Circle_X_End])

The only difference between the two calculations is that we replaced ^2 with ^(2-[Smooth Factor]) in both places. That’s it. So here are our new calculated fields for X and Y and we’ll keep the naming consistent with the original post

Circle_Bezier_X_Smooth = ((1-[T])^(2-[Smooth Factor])*[Circle_X_Start] + 2*(1-[T])*[T]*0+[T]^(2-[Smooth Factor])*[Circle_X_End])

Circle_Bezier_Y_Smooth = ((1-[T])^(2-[Smooth Factor])*[Circle_Y_Start] + 2*(1-[T])*[T]*0+[T]^(2-[Smooth Factor])*[Circle_Y_End])

Now, assuming you had already created your chord chart using the original post, just replace [Circle_Bezier_X] with [Circle_Bezier_X_Smooth] and replace [Circle_Bezier_Y] with [Circle_Bezier_Y_Smooth] and you’re done. Just play around with the parameter to get the intensity of curve that you’re looking for.

Method 2 walk-thru

As I mentioned earlier, this method is a lot more complicated. It involves calculating a new mid-point for each of our lines using some geometry and trigonometry. But similar to the first method, we’ll need a parameter to set the intensity of our curves, so let’s start there.

  • Create a new parameter called “Consistent Factor”
    • Set Data type to “Float”
    • Set Current Value to .5
    • Set Allowable values to “Range”
    • Set Minimum to 0
    • Set Maximum to 1
    • Set Step size to .1

Now here comes the tricky part. And I am sure there is a much easier solution out there, but this is what I was able to come up with.

As we discussed in the original post, to draw these curved lines, we’re essentially creating a bunch of triangles and letting the Bezier X and Y calcs do the rest of the work.

A gif demonstrating that each line is basically just a triangle

Each of these triangles have a different height depending on where, around the circle, the starting point and the ending points appear. We’re using 0,0 as the mid point, so all of the triangles meet in the middle. But if we want to apply a consistent curve to all of our lines, then we need to calculate a new mid point for each of our triangles. And the result of that new mid-point calculation, should be a bunch of triangles with the same height.

You may remember from earlier posts, that in order to plot points around a circle, we need two inputs; the distance from the center of the circle, and the position around the circle. The position around the circle is much easier to calculate so let’s start there. Let’s create a calculated field called “Scale_Mid_Point_Position”

Mid_Point_Position = IF([Position_End]-[Position_Start])*360 >180 THEN (([Position_End]-[Position_Start])/2)+[Position_Start]+.5 ELSE (([Position_End]-[Position_Start])/2)+[Position_Start] END

Now this calculation looks a little complicated, but basically what it’s doing is calculating the center of the vertex angle for each of our triangles by comparing the start and end position of each of our lines. Because this is a circle, this comparison might result in an angle that is greater than 180 degrees, which isn’t possible for a triangle. Really, it just means that our starting point and ending point are farther apart (more than .5) so the direction of the triangle flips. So when that happens, we want the inverse of that position, which we can get by adding “.5” to the calculation. Otherwise, we are just subtracting the start position from the end position, splitting the difference, and then adding it back to the start position to get the position that is directly in the middle of the start and end.

Ok, if I haven’t lost you yet, let’s keep moving. Now we need to calculate the distance from the center for each of our new mid-points. To get there, first we need to calculate the height of our existing triangles (that meet in the middle at 0,0). Unfortunately, it’s not that easy. There are a lot of different ways to calculate different parts of a triangle, so we have to work with what we got. We know the length of two sides of the triangle (equal to the radius of the circle), and we know the vertex angle. That alone isn’t enough to calculate the height (as far as I know), but it gets us a step closer. With that information, we can calculate the length of the base.

First, a quick look at the parts of one of our triangles.

An image showing the different parts of a triangle, including the Height, Base, Vertex Angle, and side length

Now let’s calculate the Vertex angle, which is going to be very similar to the position calculation we just did.

Vertex_Angle = IF ([Position_End]-[Position_Start])*360 >180 then 360-(([Position_End]-[Position_Start])*360) else ([Position_End]-[Position_Start])*360 END

Now, with that, along with our circle’s radius, we can calculate the length of the base.

Tri_Base = SQRT([Radius]^2 + [Radius]^2 – 2*[Radius]*[Radius]*COS(RADIANS([Vertex_Angle])))

And now that we know the length of all three sides of the triangle, we can calculate the height.

Tri_Height = SQRT([Radius]^2 – ([Tri_Base]^2/4))

Now we have everything we need to calculate the distance from the center for each of our mid-points. We want all of our triangles to be the same height. So first, we need a consistent height to use. We can get there by multiplying our radius by our newly created Scale Factor. Our radius = 20, so if our scale factor equals 0, the height will be 0. So no curve. If our scale factor is .5, our height will be 10. Easy.

Now, if we take the height of our existing triangle, and then subtract our new standardized height, that will give us the distance from center, our second and final input.

Con_Mid_Point_Distance = [Scale_Tri_Height] – ([Radius]*[Consistent Factor])

A gif showing all triangles with a consistent height

You can see in the gif above that all triangles now have the same height.

Now we have the position and distance from center for our mid points. All that we have to do is calculate the coordinates for the mid-points using those inputs, and then plug those coordinates into our Bezier X and Y formulas.

Con_Circle_X_Mid = [Con_Mid_Point_Distance]* SIN(2*PI() * [Scale_Mid_Point_Position])

Con_Circle_Y_Mid = [Con_Mid_Point_Distance]* COS(2*PI() * [Scale_Mid_Point_Position])

Circle_Bezier_X_Con = ((1-[T])^2*[Circle_X_Start] + 2*(1-[T])*[T]*[Con_Circle_X_Mid]+[T]^2*[Circle_X_End])

Circle_Bezier_Y_Con = ((1-[T])^2*[Circle_Y_Start] + 2*(1-[T])*[T]*[Con_Circle_Y_Mid]+[T]^2*[Circle_X_End])

Now, again assuming you had already built your chord chart using the original post, just replace [Circle_Bezier_X] with [Circle_Bezier_X_Con] and replace [Circle_Bezier_Y] with [Circle_Bezier_Y_Con] and play with the parameter to get the curve intensity you want.

Method 3 walk-thru

This method is going to be extremely similar to Method 2. The only thing we are changing is the value that we subtract from our triangle height to get the distance from the center for our new mid-points. If you went through Method 2 above, you are already 90% there. Like the other two methods, we need a parameter to control the intensity of our curves. Let’s create one called “Dependent” Factor”

  • Create a new parameter called “Dependent Factor”
    • Set Data type to “Float”
    • Set Current Value to .5
    • Set Allowable values to “Range”
    • Set Minimum to 0
    • Set Maximum to 1
    • Set Step size to .1

Now we need most of the same calculations that we used in Method 2. I’ll list them here again in case you haven’t already tried that method, but for explanations of these calcs, please read through method 2 in the previous section.

Mid_Point_Position = IF([Position_End]-[Position_Start])*360 >180 THEN (([Position_End]-[Position_Start])/2)+[Position_Start]+.5 ELSE (([Position_End]-[Position_Start])/2)+[Position_Start] END

Vertex_Angle = IF ([Position_End]-[Position_Start])*360 >180 then 360-(([Position_End]-[Position_Start])*360) else ([Position_End]-[Position_Start])*360 END

Tri_Base = SQRT([Radius]^2 + [Radius]^2 – 2*[Radius]*[Radius]*COS(RADIANS([Vertex_Angle])))

Tri_Height = SQRT([Radius]^2 – ([Tri_Base]^2/4))

Here is the main difference between this method and the previous one. Instead of multiplying our factor (parameter) by a consistent value, like radius, we are going to multiply it by the base length of our triangles. This will result in a higher value for longer lines, and a lower value for shorter lines. Just want to point out that I divided the base length by 2 in these calculations, to tone down the curves a little more, but that is optional. Here is the calculation for the distance from center for each of our new mid-points.

Dep_Mid_Point_Distance = [Scale_Tri_Height] – (([Scale_Tri_Base]/2)*[Scale Factor])

You can see in the gif above that the height of the triangles are now dependent on the length of their base.

Now we just need to calculate those new mid-points and plug them into our bezier X and Y calculations.

Dep_Circle_X_Mid = [Dep_Mid_Point_Distance]* SIN(2*PI() * [Scale_Mid_Point_Position])

Dep_Circle_Y_Mid = [Dep_Mid_Point_Distance]* COS(2*PI() * [Scale_Mid_Point_Position])

Circle_Bezier_X_Dep = ((1-[T])^2*[Circle_X_Start] + 2*(1-[T])*[T]*[Dep_Circle_X_Mid]+[T]^2*[Circle_X_End])

Circle_Bezier_Y_Dep = ((1-[T])^2*[Circle_Y_Start] + 2*(1-[T])*[T]*[Dep_Circle_Y_Mid]+[T]^2*[Circle_X_End])

Again, assuming you had already built your chord chart using the original post, or one of the previous methods, you just need to replace [Circle_Bezier_X] with [Circle_Bezier_X_Dep] and replace [Circle_Bezier_Y] with [Circle_Bezier_Y_Dep] and play with the parameter to get the curve intensity you are looking for.

That’s it. Three methods for controlling the intensity of your bezier curves. These certainly aren’t necessary when building out your chord charts, but they do produce some nice effects if you are looking to really customize your visualization. Personally, I lean towards Method 1 because of it’s simplicity. If you are looking for something more complicated, Method 2 and Method 3 are both nice, but if I had to pick, I would go with #3.

As always, thank you so much for reading and keep an eye on our blog for more fun Tableau tutorials.

Categories
How-To's

Fun With Curves in Tableau Part 2: Bezier Curves

This is part two of a three-part series on creating curved elements in Tableau. Although this post covers new and different techniques, I would recommend checking out part one of the series here as some of the concepts overlap. This post will focus on one type of curved line that is used frequently in Tableau Public visualizations; Bezier Curves. To follow along, you can download the sample data and workbook here.

Bezier Curves

There are many types of Bezier curves varying in complexity from very simple to ridiculously complicated. One commonality with these types of curves is that they rely on ‘control points’. This post is going to focus on quadratic Bezier curves, which have 3 control points. An easy way to think about these points is that there is a starting point, a mid point, and an end point, creating a triangle. The starting point and end point are simply the start and end of the line. The other point, the mid point, will determine the shape of the triangle, and in turn, what that curve is going to look like. Now let’s see how the position of that mid point (creating different types of triangles) will affect the curve.

Each of the triangles above have the same starting point (1,0) and the same end point (10,0), but have significantly different curves because of the varying mid point. For most applications in Tableau we’re going to be dealing with examples like Example 1 and Example 4 in the image above, where the mid point is halfway between the other points, creating an isosceles triangle. To make things even easier for this example, we’re going to deal with just Example 1, which is an equilateral triangle, meaning all 3 sides are the same length.

Building Your Data Source

To build our data source we are going to follow the same process that we did in Part 1 of this series. We are going to create additional points by joining our sample data to a densification table using join calculations (value of 1 on each side of the join). In this case, our sample data is called Bezier_SampleData and our densification data is called BezierModel. You can download the sample data here. In our sample data we have 10 records that we’ll use to draw 10 unique curves. For simplicity sake, all of these curves will start and end at 0 on the Y axis.

Building Your Calculations

To draw our curves there are a few things we’ll need to calculate. Our sample data has 2 of the 3 points we need (starting point and end point), so we’ll need to calculate the X and Y values for the 3rd point (mid point). Let’s start there.

We discussed above that we are going to use equilateral triangles to draw our curves. In that case, the X value for the mid-point will be halfway between [X_Start] and [X_End] and the Y value will be the height of the triangle plus the starting point. Here is an example

To find the X value that falls in the middle of [X_Start] and [X_End], just add them together and divide by 2

X_Mid

([X_Start]+[X_End)/2

To find the Y Value add the Y starting point to the height of the triangle. To find the height of the triangle, use the formula (h=a*3/2) where a is the length of one of the sides of your equilateral triangle. To find that length subtract [X_Start] from [X_End]

Y_Mid

[Y_Start] + (([X End]-[X Start])*SQRT(3)/2)

Now, we have 3 points for each record in our data set. We have our starting point ([X_Start],[Y_Start]), our end point ([X_End],[Y_End]), and our mid point ([X_Mid],[Y_Mid]). If we were to stop here and plot those points, it would look something like this, 10 equilateral triangles of different sizes, all on the Y axis (because we had used 0 for all of the [Y_Start] and [Y_End] values)

Now let’s convert those points into Bezier curves. The first calculation we’ll need is [T]. T is going to be a percentage value that is equally spaced between 0 and 1 for the number of points in our densification table. Think of this as similar to the [Position] calc in Part 1 of this series, but slightly different because we need our first point to start at 0.

T

([Points]-1)/{MAX([Points])-1}

No matter how many points you add to your densification table, this calculation will spread them evenly between 0 and 1. This field is used to evenly space our points along our curved line. When complete, your T values should look like this. The value for point 1 should be 0%, the value for the last point should 100% and all of the points in the middle should be equally spaced between those

Now all that is left is to calculate the X and Y coordinates for each point along our curved lines. The calculations for X and Y are exactly the same, but in the [Bezier_X] calc you are using the 3 X values, and in the [Bezier_Y] calc you are using the 3 Y values

Bezier_X

((1-[T])^2*[X_Start] + 2*(1-[T])*[T]*[X_Mid]+[T]^2*[X_End])

Bezier_Y

((1-[T])^2*[Y_Start] + 2*(1-[T])*[T]*[Y_Mid]+[T]^2*[Y_End])

Now let’s build the curves in Tableau

Build Your Curves

Follow the steps below to build your curves

  • Right click on the [Bezier_X] field, drag it to columns, and when prompted, choose the top option ‘Bezier_X’ without aggregation
  • Right click on the [Bezier_Y] field, drag it to rows, and when prompted, choose the top option ‘Bezier_Y’ without aggregation
  • Change the Mark Type to ‘Line’
  • Right click on the [Points] field, drag it to Path, and when prompted, choose the top option ‘Points’ without aggregation
    • This tells Tableau what order to ‘connect the dots’ in.
  • Drag [Line Name] to color

When you finish, your worksheet should look something like this

Or you can change the Mark Type to ‘Polygon’ and reduce the Opacity and it will look like this

Now this is a relatively simple example. You can get really creative with how you calculate those 3 points, especially the ‘mid’ point. Let’s do one more example, combining the work we’ve done in this exercise with what we had done in Part 1 of the series. The result should look pretty familiar.

First, let’s take our X values and plot them in a circle, instead of on a straight line. From Part 1 of this series, we know that in order to plot points around a circle, we need 2 inputs for each point; the Radius (the distance from the center of the circle), and the Position (the position around the circle expressed as a percentage). Since we want all of our points to be equally distant from the center, we can use a single value for the radius of all points. Let’s create a parameter called [Radius] and set the value to 10. For Position, we’ll need to calculate the position for each start and end point. For the position calculations we’ll need to first find the maximum number of points around our circle, or in this case, the max value of the [X_Start] and [X_End] fields together. Looking at our data, we can see the maximum value of the [X_Start] field is 12 and the maximum value of the [X_End] field is 15. So our Max Point will be 15

Max_Point

{MAX(MAX([X_Start],[X_End]))}

Next, we’ll use that value to calculate the position around the circle for each start and end point

Position_Start

[X_Start]/[Max_Point]

Position_End

[X_End]/[Max_Point]

Now, we can calculate the X and Y coordinates for the starting point and end point of every line, using the same calculations we used in Part 1 of the series. Let’s begin with the starting points

Circle_X_Start

[Radius]* SIN(2*PI() * [Position_Start])

Circle_Y_Start

[Radius]* COS(2*PI() * [Position_Start])

And now we’ll calculate the X and Y coordinates for the end points using the same formulas but swapping out the [Position_Start] field, with the [Position_End] field.

Circle_X_End

[Radius]* SIN(2*PI() * [Position_End])

Circle_Y_End

[Radius]* COS(2*PI() * [Position_End])

Now for each of our lines, we have two sets of coordinates. We have the coordinates for the start of our line ([Circle_X_Start],[Circle_Y_Start]) and the coordinates for the end of our line ([Circle_X_End],[Circle_Y_End]). All we need now is that 3rd set of coordinates, the mid-point. The good news is, when plotting these around a circle, we have a very convenient mid-point…the middle of the circle. In this case, because our circle is starting at (0,0), we can use those values as our 3rd set of points. Let’s take our 3 sets of coordinates and plug them into the Bezier calculations we used earlier

Circle_Bezier_X

((1-[T])^2*[Circle_X_Start] + 2*(1-[T])*[T]*0+[T]^2*[Circle_X_End])

Circle_Bezier_Y

((1-[T])^2*[Circle_Y_Start] + 2*(1-[T])*[T]*0+[T]^2*[Circle_Y_End])

Now in our view if we replace the [Bezier_X] and [Bezier_Y] fields with the [Circle_Bezier_X] and [Circle_Bezier_Y] fields, we get something like this…the foundation of a chord chart

This chart uses the same exact calculations for the curved lines, we just used some additional logic to calculate the coordinates for the start and end points. In our first example, for Line 2, we drew a curved line between 3 and 15 on the X axis. The coordinates for our start and end point were (3,0) and (15,0) respectively. Then we calculated the coordinates for our mid point, which ended up being (9,10.4)

In this last example, we also drew a curved line between 3 and 15, but instead of those points being on the same Y axis, they were positioned around a circle. We used what we learned in Part 1 of this series to translate those X values (3 and 15) into coordinates around a circle. So the coordinates for our start and end positions ended up being (9.5,3.1) and (0,10) respectively. And instead of calculating our mid-point, we used the center of the circle (0,0).

These are just a few basic examples of what you can do with Bezier curves, but there are so many possibilities. Here are a few examples of where I’ve used Bezier Curves in my Tableau Public Profile.

Thank you so much for reading, and keep an eye out for the third and final part of this Series, focusing on Sigmoid curves.

Update on 11/1/2022

We have added another post that expands on this topic. This post walks through three different methods for controlling the intensity of the Bezier Curves. Check out the post below.

Fun With Curves in Tableau Part 2+: Controlling Bezier Curves

Categories
How-To's

Fun With Curves in Tableau Part 1: Circles

In recent years there have been multiple scientific studies1 designed to confirm what many of us in the Data Visualization Community have already suspected; when it comes to art, people are drawn to curves. Think about some of your favorite pieces of Data Art. I am willing to bet that the majority of them contain some type of curved element. Not only are curves more aesthetically pleasing than straight lines and sharp corners, but they have that ‘WOW’ factor, because as we all know, curved lines do not exist in Tableau. They take effort, and when it comes to drawing curves, most people don’t know where to start. But you don’t need to be an expert in Tableau to create beautiful radial charts, or to add some impressive curves to your dashboards. You just need to know the math, you need to know how to structure your data, and you need to know how to bring those elements together in Tableau. That’s the goal of this series. To hopefully demystify some of this work and make it more approachable, and to provide some examples. This series will focus on three types of curved elements; Circles, Bezier Curves, and Sigmoid Curves.

Drawing Circles in Tableau

Tableau does have a ‘Circle’ mark type that can be used, but being able to draw your own circles opens up a world of possibilities. The calculations that are used for drawing a circle, are the same calculations that can be used to create any type of radial chart you can imagine. For this post, I am going to keep the math as simple as possible, but if you’re interested in diving deeper I would recommend checking out this post by Ken Flerlage.

Once you have your data structured there are really only 2 inputs needed to create your radial; the distance of each point from the center of the circle (radius), and the position of each point around the circle. We’ll discuss these inputs a lot more in this post, but let’s start with our data structure. To follow along with this post, you can download the sample data and workbook here.

Building Your Data Source

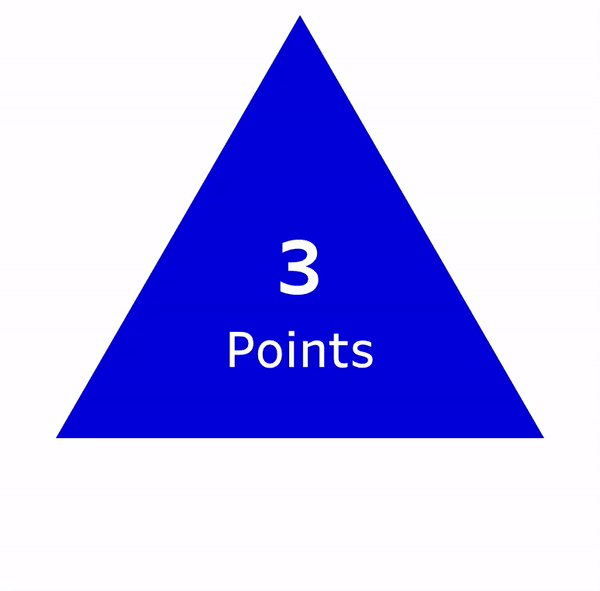

To create any type of curved element in Tableau, you’ll need to start by densifying your data. To create your densification table, create a table in Excel with 1 column, in the first cell name that column ‘Points’, and then add rows with numbers 1 through however many points you wish to create. There are a few things to consider when choosing that number. Choosing a number that is too high may affect performance as that many rows will be added to your data source for each record in your ‘Core’ data set (a data source with 1000 rows will turn into 100,000 if you choose 100 points). Choosing a number that is too low will result in visible straight lines and corners instead of a smooth curve. Here is an example to help visualize how the number of points can affect the shape

I will usually choose somewhere between 50 and 100 points, closer to 50 when the circles will be small, and closer to 100 when the circles will be large. For this post, we’ll go with 50 points, so your densification table should look something like this.

And here is some sample data we’ll use as our ‘Core’ data source. We have 10 records that we’ll use to create 10 distinct circles, and we’ll use the ‘Value’ column to size the circles appropriately. I use this technique frequently, instead of the ‘Circle’ mark type in Tableau, to ensure that the size (area) of each circle accurately represents the underlying value. When designing my ‘Core’ data source, I like to use a sequential ‘ID’ field, starting from 1. This can help make some of the calculations easier, but if it’s not an option, you can typically replace that ‘ID’ field with the INDEX function in Tableau.

Now that we have our ‘Core’ data set, and our densification table, let’s bring these together in Tableau. To densify our data we’ll need to join these two tables in the physical layer in Tableau.

  • First, connect to your ‘Core’ data. In this example, that table is called ‘CircleData’
  • Drag your ‘CircleData’ table onto the Data Source pane
  • Double-click on the ‘CircleData’ Logical Table to view the Physical Tables
  • Drag your ‘Densification’ data onto the Data Source pane. In this example, this table is called ‘CircleDensification’
  • Join the tables with a Join Calculations
    • On the left side of the join, click on the drop-down and select ‘Create Join Calculation’
    • In the calculation box enter the number 1
    • Repeat the steps above on the right side of the join
  • When complete, your data source should look like this

Building Your Calculations

Now that we have our data source, the next step will be to build our calculations. As I mentioned earlier, there are 2 inputs that we’ll need to draw our circles; the distance of each point from the center of the circle, and the position of each point around the circle. Let’s start with the distance calculation.

In this example, we want the area of the circle to represent the value in our data. The distance from the center of a circle to the outside of the circle is known as the radius, and we can calculate that with the formula below. This will serve as our first input.

r = √A/π or in plain English Radius = Square Root of Area/Pi

In our data we have the Area (Value) so we can calculate the radius for each of circles using the calculation below in Tableau. Create a new calculated field called ‘Radius‘ and copy the formula below

Radius

SQRT([Value]/PI())

For the next input, we’ll need to calculate the position of each point around the circle. For each circle, we have 50 points (the number of rows in our densification table) and we’ll want to evenly distribute those points around the circle. The resulting number will be a percentage and will represent how far around the circle that point appears. For example, imagine you were looking at a clock. 3 o’clock would be 25%, 6 o’clock would be 50%, 9 o’clock would be 75% and 12 o’clock would be 100%

We can calculate that percentage for each point by taking the value of the Points field divided by the Max Value of that field (which would represent the number of points or number of rows in our densification table). So the Position calculation would be as follows in Tableau

Position

[Points]/{MAX([Points])}

Note* if you plan on using the ‘Line’ mark type to draw your circles instead of the ‘Polygon’ mark type, you should modify this calculation by subtracting 1 from the divisor, [Points]/{MAX([Points])-1}. This is because polygons will automatically connect your first and last point. For lines, we need to force that connection.

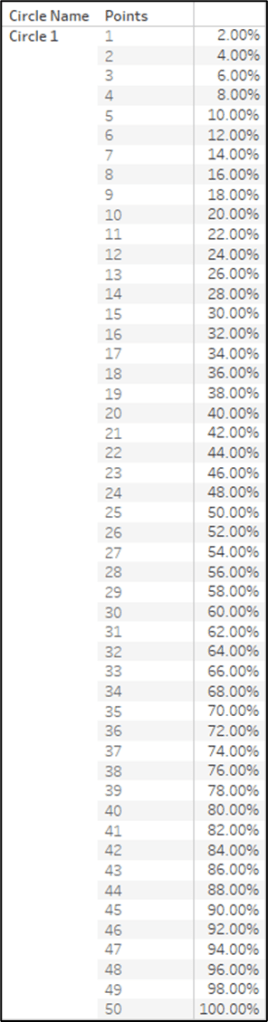

Now your data should look something like this. For each record in your ‘Core’ data set, you have 50 points, with position values equally spread between 0-100%

Now we have our 2 inputs and all that is left to do is to translate these inputs into X and Y coordinates, which can be done with two simple calculations

X

[Radius]* SIN(2*PI() * [Position])

Y

[Radius]* COS(2*PI() * [Position])

Build your Circles

Follow the steps below to build your circles

  • Right click on the [X] field, drag it to columns, and when prompted, choose the top option ‘X’ without aggregation
  • Right click on the [Y] field, drag it to rows, and when prompted, choose the top option ‘Y’ without aggregation
  • Change the Mark Type to ‘Polygon’
  • Right click on the [Points] field, drag it to Path, and when prompted, choose the top option ‘Points’ without aggregation
    • This tells Tableau what order to ‘connect the dots’ in.
  • Drag [Circle Name] to color

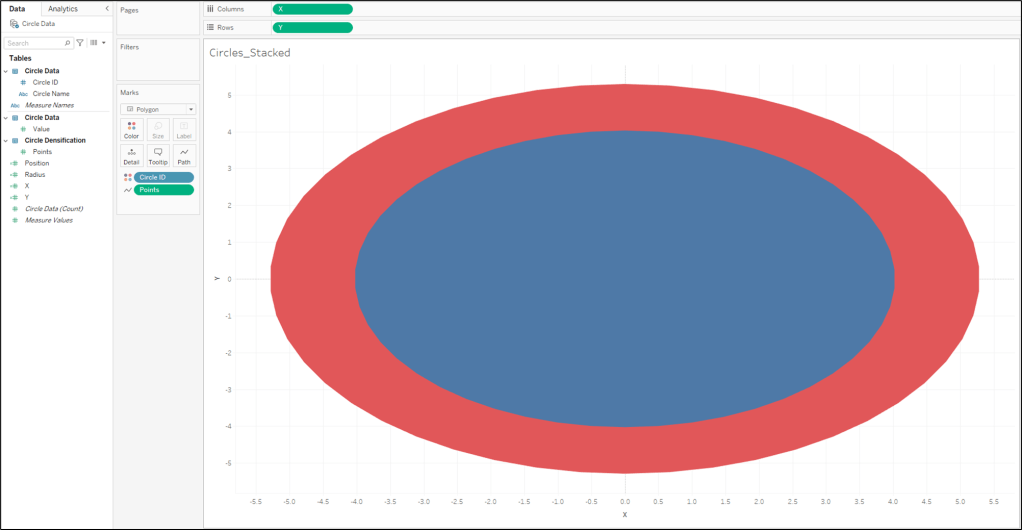

When you finish, your worksheet should look something like this

Right away, you’ll probably notice a few things about this. First, these look like ovals, not circles. And second, there are only 2 circles when there should be 10. The reason they look like ovals is because the worksheet is wider than it is tall. It’s important when you place a radial chart on a dashboard that you set the width and height equal and that you Fix both the X and Y axis to the same range. The reason there are only two circles visible is because all 10 circles have the same starting position (0,0), so they are currently stacked on top of each other.

Arrange Your Circles

There are a number of techniques you can use to arrange these circles. You could place the [Circle ID] field on Rows to create a column of circles, or on Columns to create a row of Circles. Or, with a little more math, you could do a combination of these and create a trellis chart, or ‘small multiple’. But personally, I like to use ‘offset values’ which place everything on the same pane and give you total control of the placement of each object.

First, let’s place all of these circles in a single row. To do this, we’ll create a numeric parameter and set the value to 10. This is going to be used to set the spacing between each circle. To increase the spacing, set the parameter higher. To decrease the spacing, set the parameter lower.

Now we’ll create our ‘offset value’.

Circle Offset

[Circle ID]*[Circle Offset Parameter]

And next, we’ll add that value to our [X] calculation

X

[Radius]* SIN(2*PI() * [Position]) + [Circle Offset]

And here is the result

This works because it moves every point in each circle an equal amount. For Circle 1, the [Circle Offset] value will be 10 (Circle ID is 1 x Circle Offset Parameter is 10 = 10). Adding that to the [X] value that was previously calculated will move every point in that circle 10 to the right. For Circle 2, the [Circle Offset] value will be 20 (Circle ID is 2 x Circle Offset Parameter is 10 = 20), which will move every point in that circle 20 to the right.

If we add the [Circle Offset] value to the [Y] calculation instead of [X], the result will be a single column of circles. And if we add the [Circle Offset] field to both the [X] and the [Y] values, the result will be a diagonal line.

So those are some easy ways to plot your circles in a line…but this is a post about circles. So…let’s plot them in a circle. And to do this we’re going to use the same techniques we used to draw the circles.

First, let’s create one more parameter that will serve as the radius of our new circle. We’ll call it ‘Base Circle Radius’ and set the value to 30

That parameter will be one of our two inputs for plotting points around a circle. The second input is going to be the position. Previously, we had 50 points that we wanted to plot evenly around a circle. Now, we have 10 points (10 circles). Previously, we had values 1 thru 50 (the Points field). Now, we have values 1 thru 10 (the Circle ID field). So using the same technique we used earlier, we’ll calculate the position of each circle around our ‘Base’ circle.

Base Circle Position

[Circle ID]/{MAX([Circle ID])}

Now, we have our two inputs and we can use the same calculations to translate those into X and Y values

Base Circle X

[Base Circle Radius]* SIN(2*PI() * [Base Circle Position])

Base Circle Y

[Base Circle Radius]* COS(2*PI() * [Base Circle Position])

Now all you need to do is add these values to your [X] and [Y] calculations respectively, similar to what we did in the previous section

X

[Radius]* SIN(2*PI() * [Position]) + [Base Circle X]

Y

[Radius]* COS(2*PI() * [Position]) + [Base Circle Y]

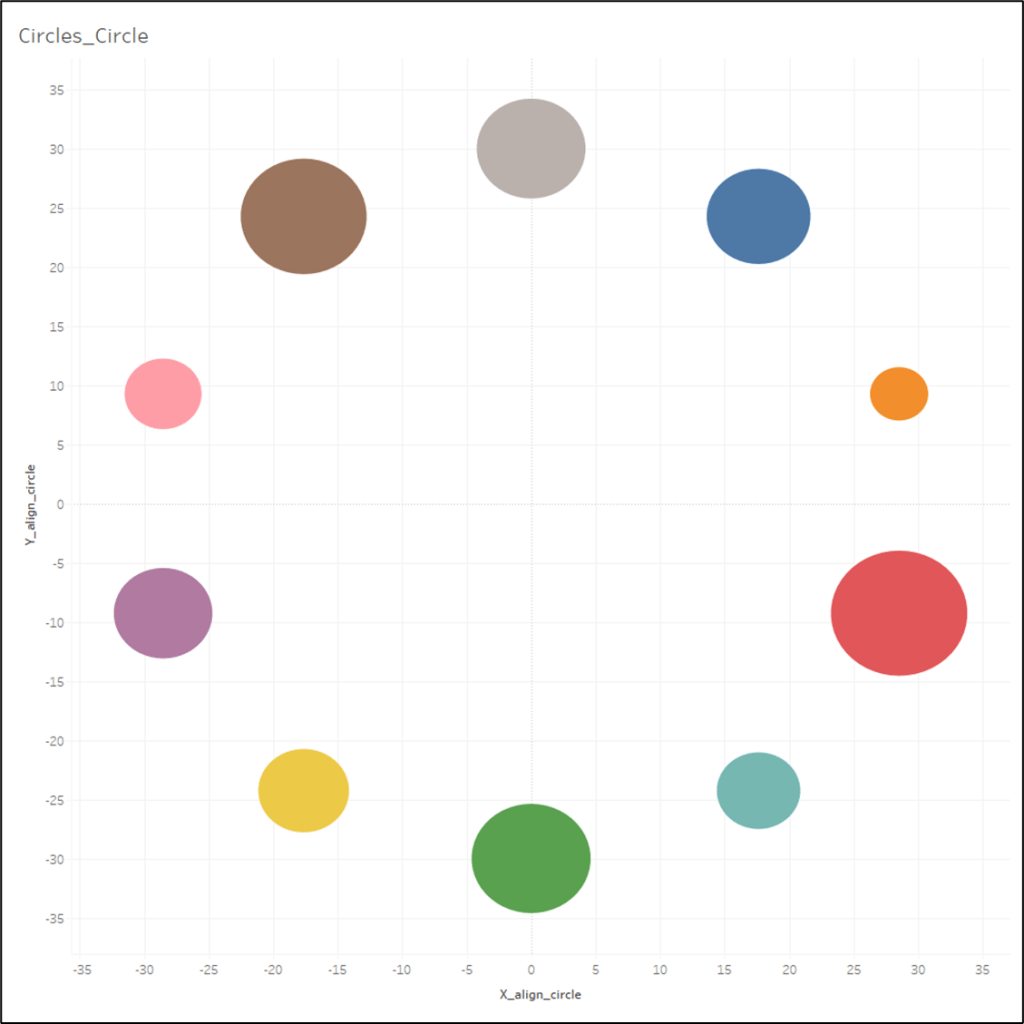

And here is the result, a circle of circles

Now this is just one simple example of what’s possible once you know how to plot points around a circle. I use these same few calculations, with some modifications, in a ton of my Tableau Public visualizations. Here are a few examples that use this technique.

Thank you so much for reading the first of many posts on Do Mo(o)re With Data and keep an eye out for the second part of this series.

1 Here’s an article about a few studies demonstrating human’s innate affinity for curves. Link
